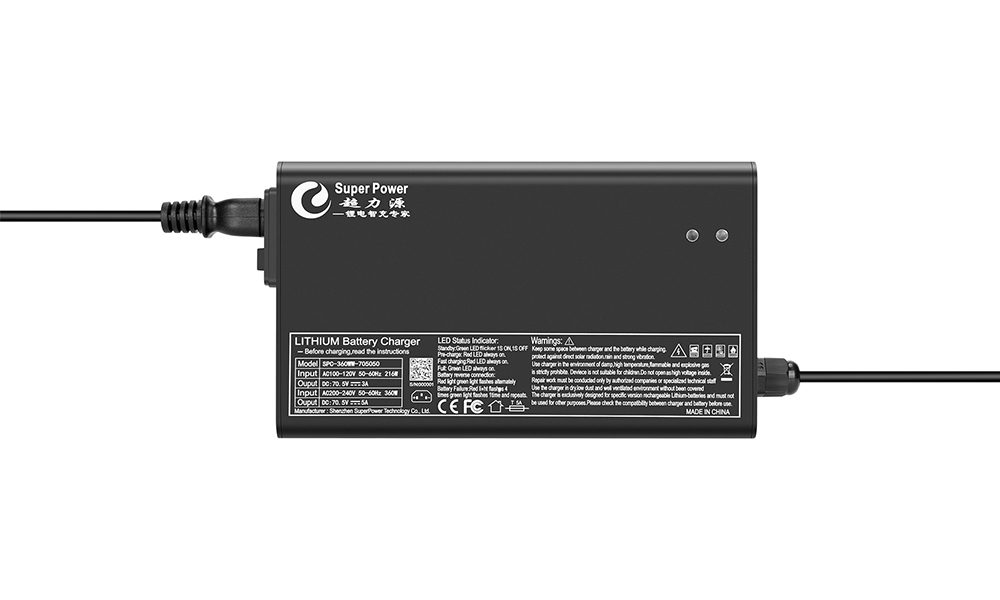

SPC-360 Series Chargers
|
|
Meet CB, CE, CQC Certificates etc.
|
|
Product details
|
|
Input Voltage
|
200V ~ 240Vac / 50Hz
|
|
Output rated current
|
10A
|
8.5A
|
6.5A
|
5A
|
4A
|
|
Output voltage range
|
21 ~ 29.4V
|
30 ~ 43.8V
|
39 ~ 58.8V
|
48 ~ 73V
|
57 ~ 87.6V
|
|
Output current range
|
8 ~ 10A
|
6.5 ~ 8.5A
|
4.5 ~ 6.5A
|
3 ~ 5A
|
3 ~ 4A
|
|
Battery Nominal Voltage
|
24V
|
36V
|
48V
|
60V
|
72V
|
|
Output efficiency
|
≥93%
|
|
Output voltage accuracy
|
1%
|
|
Output current accuracy
|
1%
|
|
PFC
|
≥0.95
|
|
Protections
|
Over current protection, Over voltage protection, Over temperature protection, Short-circuit protection, Reverse polarity protection, Timing protection
|
|
IECEE Test
|
60335-2-29:2016 ; IEC 60335-1:2010+A1+A2
|
|
EMC Test
|
EN 55014-1:2017 , EN 61000-3-2:2014 , EN 61000-3-3:2013, EN 55014-2:2015
|
|
Dimension
|
195*114*54mm
|
|
More models with different output voltage & current are available
|
|
SPC-360 Series Chargers ( Low Voltage with Certificates )
|
|
Certificates: CB, FCC, etc.
|
|
Product details
|
|
Input voltage
|
100V ~ 120Vac / 50Hz
|
|
Output rated current
|
7.5A
|
7A
|
4.9A
|
3.6A
|
2.9A
|
|
Output voltage range
|
22 ~ 29.4V
|
30 ~ 43.8V
|
39 ~ 58.8V
|
48 ~ 73V
|
57 ~ 87.6V
|
|
Output current range
|
5 ~ 7.5A
|
5 ~ 7A
|
3 ~ 4.9A
|
2 ~ 3.6A
|
1.8 ~ 2.9A
|
|
Battery Nominal Voltage
|
24V
|
36V
|
48V
|
60V
|
72V
|
|
Output efficiency
|
≥93%
|
|
Output voltage accuracy
|
1%
|
|
Output current accuracy
|
1%
|
|
PFC
|
≥0.95
|
|
Protections
|
Over current protection, Over voltage protection, Over temperature protection, Short-circuit protection, Reverse polarity protection, Timing protection
|
|
IECEE Test
|
60335-2-29:2016 ; IEC 60335-1:2010+A1+A2
|
|
EMC Test
|
EN 55014-1:2017 , EN 61000-3-2:2014 , EN 61000-3-3:2013, EN 55014-2:2015
|
|
Dimension
|
195*114*54mm
|
|
More models with different output voltage & current are available
|
|
SPC-360 Series Chargers ( High Voltage with Certificates)
|
|
Certificates: CB, CE, etc.
|
|
Product details
|
|
Input Voltage
|
200V ~ 240Vac / 50Hz
|
|
Output rated current
|
12.5A
|
12A
|
8.3A
|
6A
|
4.9A
|
|
Output voltage range
|
22 ~ 29.4V
|
30 ~ 43.8V
|
39 ~ 58.8V
|
48 ~ 73V
|
57 ~ 87.6V
|
|
Output current range
|
8 ~ 12.5A
|
8 ~ 12A
|
6 ~ 8.3A
|
4 ~ 6A
|
3 ~ 4.9A
|
|
Battery Nominal Voltage
|
24V
|
36V
|
48V
|
60V
|
72V
|
|
Output efficiency
|
≥93%
|
|
Output voltage accuracy
|
1%
|
|
Output current accuracy
|
1%
|
|
PFC
|
≥0.95
|
|
Protections
|
Over current protection, Over voltage protection, Over temperature protection, Short-circuit protection, Reverse polarity protection, Timing protection
|
|
IECEE Test
|
60335-2-29:2016 ; IEC 60335-1:2010+A1+A2
|
|
EMC Test
|
EN 55014-1:2017 , EN 61000-3-2:2014 , EN 61000-3-3:2013, EN 55014-2:2015
|
|
Dimension
|
195*114*54mm
|
|
More models with different output voltage & current are available
|
